Benchmark On 2950 (tunning at the kernel Level)

the basic information of the system2950 basic info

basic device configuration

For the following tests, the basic configuration of the devices is:
2 devices: /dev/sdb  and /dev/sdc,  each is mapped to a perc6E(raid controller)
hosted 2MD1000(2*15 SATA II disks),

the raid configurations is as:
raid50 stripesize=128KB ,read=readahead, write=writeback

/sys/block/sdb/queue/nr_requests =128
/sys/block/sdb/device/queue_depth = 128

 /sys/block/sdc/queue/nr_requests =128
/sys/block/sdc/device/queue_depth = 128

different IO schedulers

commands used to change the IO scheduler

echo anticipate >/sys/block/sdb/queue/scheduler
echo anticipate >/sys/block/sdc/queue/scheduler

echo cfq >/sys/block/sdb/queue/scheduler
echo cfq >/sys/block/sdc/queue/scheduler

echo deadline >/sys/block/sdb/queue/scheduler
echo deadline >/sys/block/sdc/queue/scheduler

echo noop >/sys/block/sdb/queue/scheduler
echo noop >/sys/block/sdc/queue/scheduler

Read performance for different IO schedulers

Re-Read performance for different IO schedulers

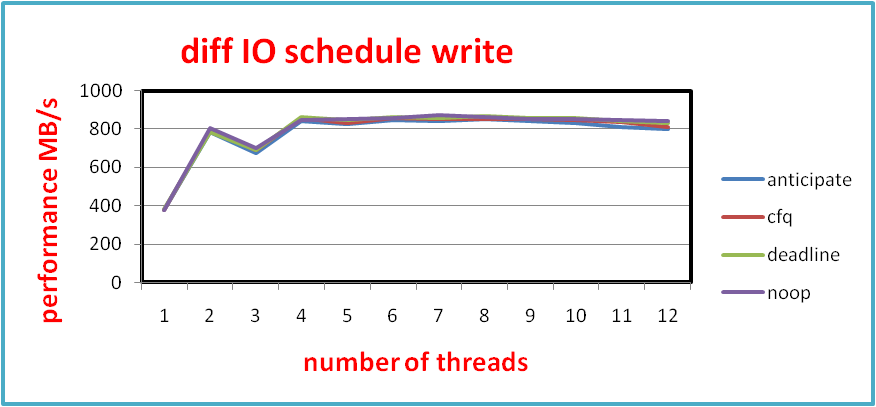

Write performance for different IO schedulers

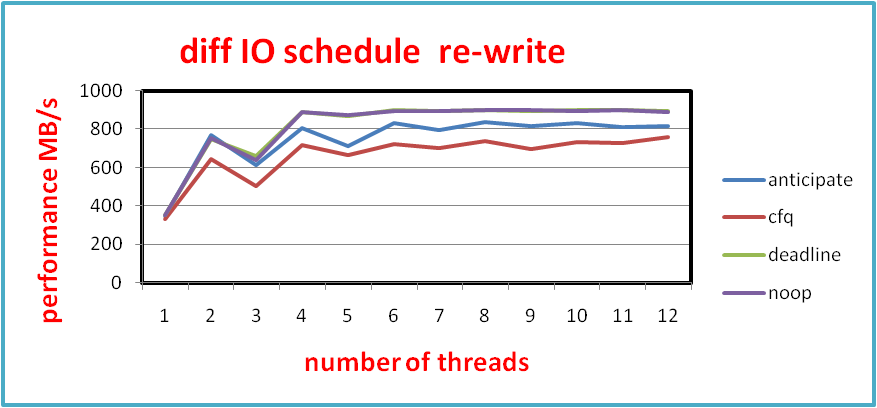

Re-Write performance for different IO schedulers

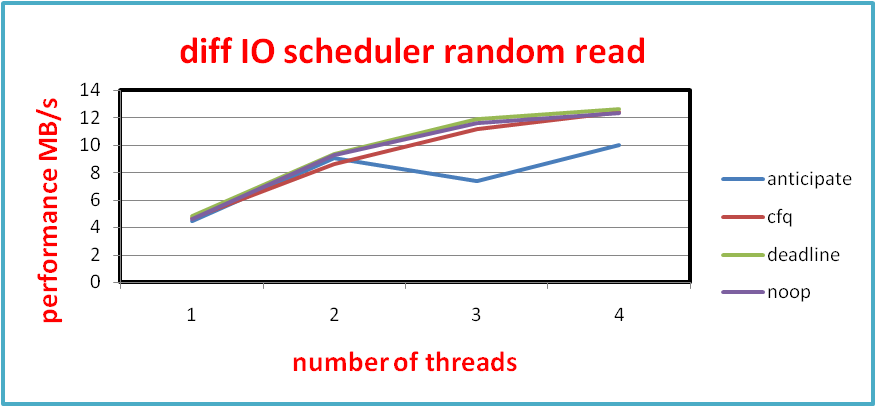

Random_Read performance for different IO schedulers

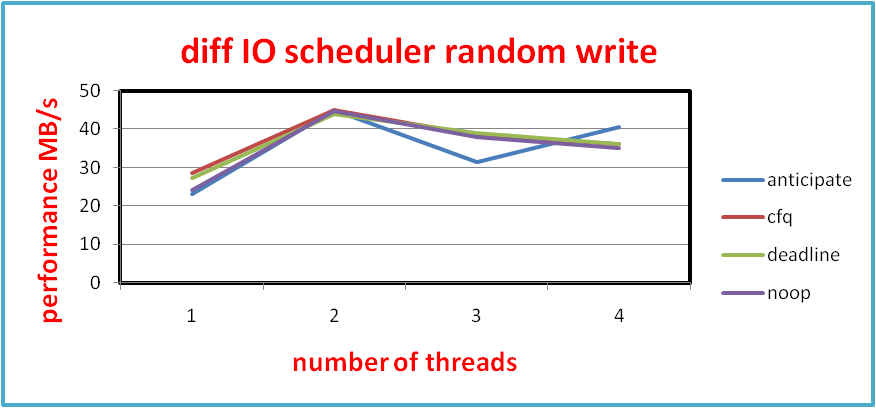

Random_Write performance for different IO schedulers

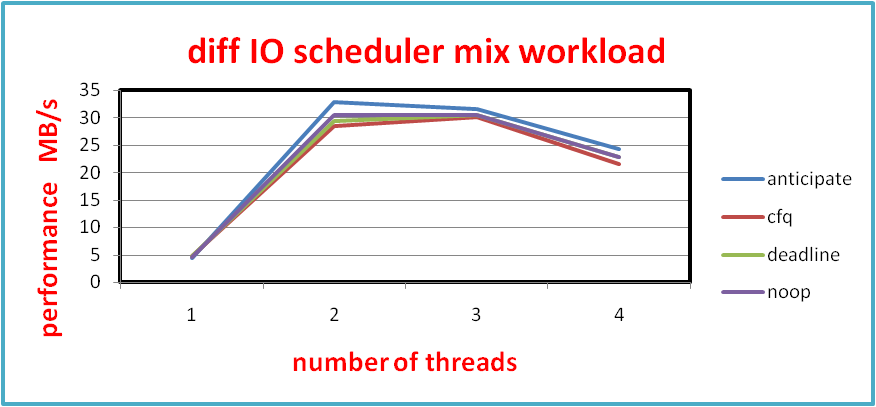

Mix_WorkLoad performance for different IO schedulers

conclusion about different IO schedulers.

As we can see from the plots, the deadline and noop are doing much better than the other 2 scheduler.. if we calculated the average performance on multiple threads, the deadline is doing a little bit better than noop.. so we will choose deadline for our system as the IO scheduler for both devices..

different size for nr_queue

For the following tests, the basic configuration of the devices is:
2 devices: /dev/sdb  and /dev/sdc,  each is mapped to a perc6E(raid controller)
hosted 2MD1000(2*15 SATA II disks),

the raid configurations is as:
raid50 stripesize=128KB ,read=readahead, write=writeback

/sys/block/sdb/device/queue_depth = 128
/sys/block/sdb/queue/scheduler = deadline

/sys/block/sdc/device/queue_depth = 128
/sys/block/sdc/queue/scheduler = deadline

commands used to change the nr_queue number

echo 128 > /sys/block/sdb/queue/nr_requests
echo 128 > /sys/block/sdc/queue/nr_requests

echo 256 > /sys/block/sdb/queue/nr_requests
echo 256 > /sys/block/sdc/queue/nr_requests

echo 512 > /sys/block/sdb/queue/nr_requests
echo 512 > /sys/block/sdc/queue/nr_requests

echo 1024 > /sys/block/sdb/queue/nr_requests
echo 1024 > /sys/block/sdc/queue/nr_requests

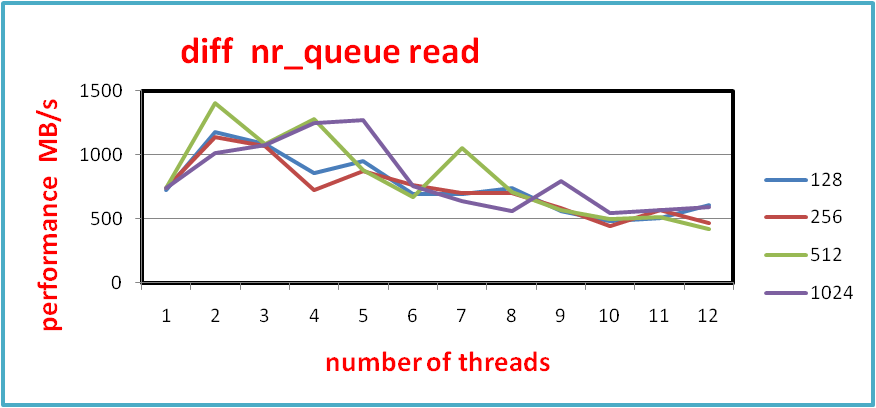

Read performance for different nr_request

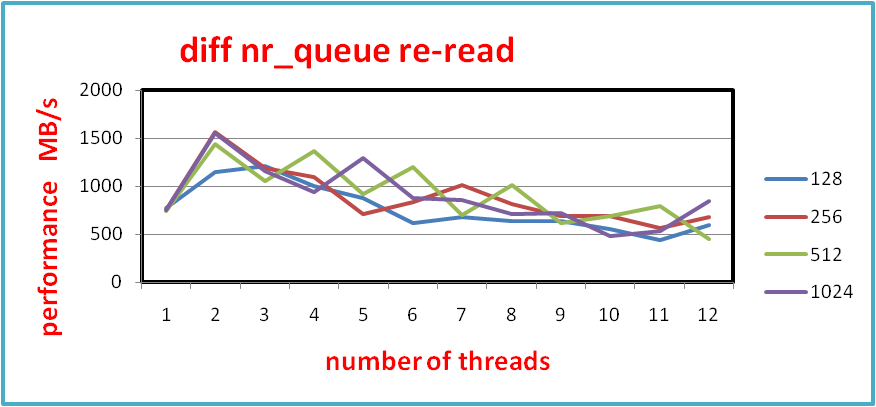

Re-Read performance for different nr_request

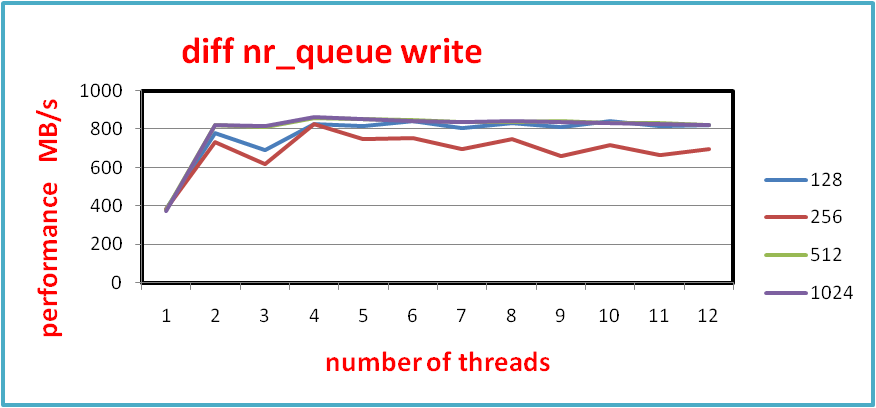

Write performance for different nr_request

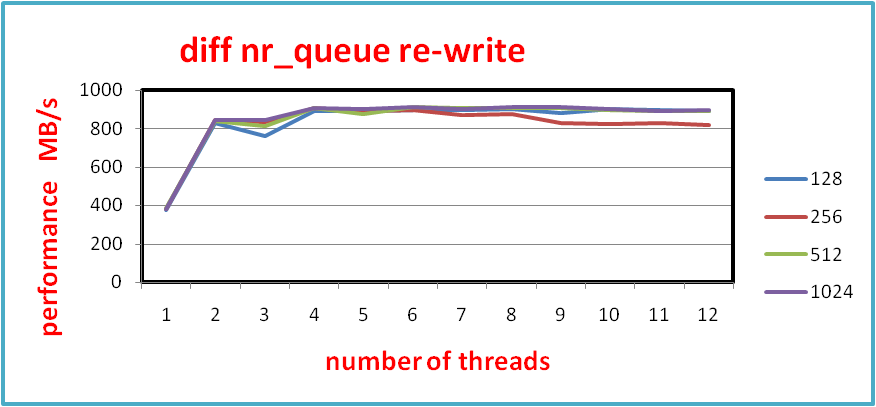

Re-Write performance for different nr_request

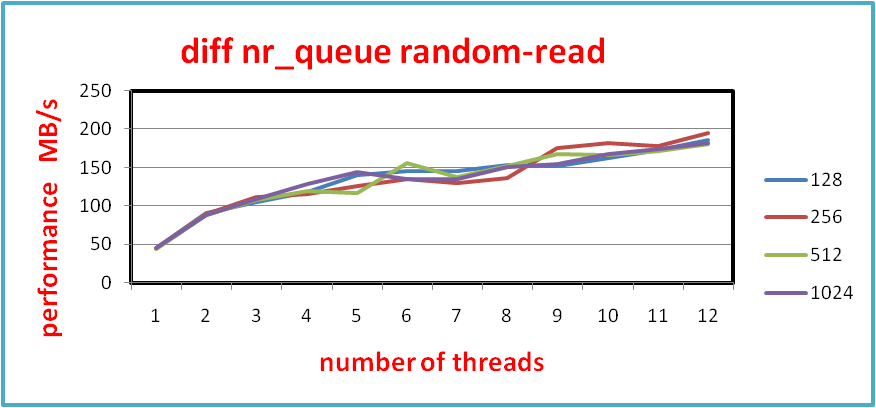

Random-Read performance for different nr_request

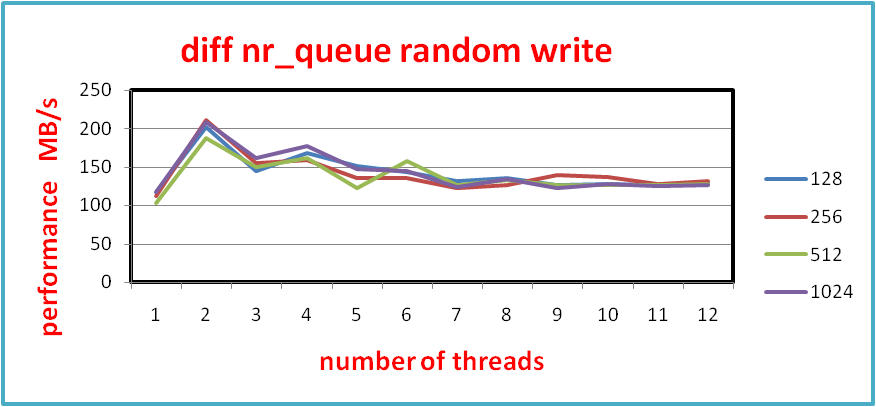

Random-Write performance for different nr_request

conclusion about different size of nr_queue

As we can see from the plots , the length of request queue has some influence on the IO performance, especially for the re-read and write.. from the average number of performance, the best length for the request queue for our system is 512..

-- WenjingWu - 17 Mar 2008
